Description

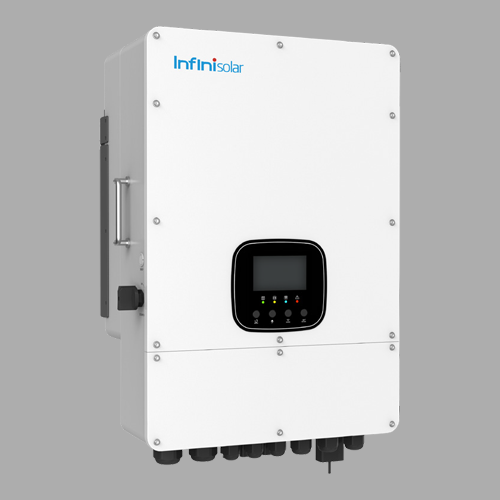

EU118-12KL3 Hybrid Solar Inverter (12KW) – Three Phase | 380VAC
Description
The EU118-12KL3-EU Hybrid Solar Inverter is a powerful and reliable solution for large-scale solar energy applications. With a rated power of 12KW, this inverter is designed to deliver high efficiency and flexible operation for both on-grid and off-grid systems. It features a low battery voltage of 48V, ensuring enhanced safety and long-term system performance. Its advanced design allows for seamless integration with existing solar installations, making it ideal for both new projects and system upgrades.
Key Features:
Three-Phase Output: Offers 100% unbalanced output, enabling each phase to deliver up to 50% of the rated power for optimal load balancing and energy distribution.
Flexible Parallel Connection: Allows up to 6 units to be connected in parallel, offering scalable and customizable energy solutions for large properties or commercial installations.
Battery Compatibility: Supports both lead-acid and lithium batteries with a maximum charging/discharging current of up to 240A, ensuring reliable power storage and management.
AC Coupling: Can be integrated with existing solar systems via AC coupling, providing flexibility for system expansion and retrofitting.
Advanced Monitoring: Equipped with Wi-Fi monitoring for real-time performance tracking and remote control.
Weatherproof and Durable Design: IP65-rated for dust and water protection, ensuring the inverter performs reliably in all weather conditions.
Energy Storage: Capable of storing energy from solar power, diesel generators, and more, for use during off-peak hours or emergencies.
Time-of-Use Function: Offers customizable time segments for optimized energy usage based on your electricity consumption patterns.
Integrated Protection: Includes multiple protection features such as arc fault detection, anti-islanding protection, and overcurrent protection, ensuring the safety and longevity of the system.
Specifications:
Rated Power: 12,000W
Battery Type: Lead-acid battery / Lithium battery
Battery Voltage: 48V
Battery Voltage Range: 40V ~ 60V
Maximum Charging/Discharging Power: 12,000W
Maximum Charging/Discharging Current: 240A
Max DC Input Power: 15,600W
Rated PV Input Voltage: 550V
Maximum DC Voltage: 800V
Start-up Voltage: 160V
Minimum Voltage for Grid Connection: 310V
Full Load DC Voltage Range: 350V ~ 650V
MPPT Voltage Range: 200V ~ 650V
Maximum Input Current: 15A/15A
Number of MPP Trackers: 2
Number of Strings per MPP Tracker: 1+1
Rated AC Input/Output Power: 12,000W
Max AC Input/Output Power: 13,200W
AC Input/Output Rated Current: 18.2A/17.4A
Max AC Input/Output Current: 20A/19.1A
Max Three-Phase Unbalanced Output Current: 27.3A/26.1A
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Rated Input/Output Voltage: 220/380, 230/400 VAC
Rated Input/Output Grid Frequency/Range: 50/60; 45~55/55-65
Grid Type: Three Phase
Total Harmonics Current Distortion (THDi): <3% (of nominal power)
DC Current Injection: <0.5% In
Max Efficiency: ≥97.5%
Euro Efficiency: 97.0%
Protection:
Integrated Protection: PV arc fault detection, anti-islanding protection, PV string input reverse polarity protection, insulation resistor detection, residual current monitoring unit, output overcurrent protection, and output shorted protection.
Surge Protection: DC Type III / AC Type III
Overvoltage Category: DC Type II / AC Type III
Operating Conditions:
Operating Temperature Range: -20°C to +60°C (with derating above 45°C)
Cooling: Smart cooling
Noise: ≤55dB
Communication Ports: Wi-Fi/USB/GPRS/RS485/CAN
Dimensions & Weight:
Machine Dimensions (WHD): 444 * 654.2 * 259.2 mm
Package Dimensions (WHD): 567 * 816 * 404 mm
Net Weight: 35 kg
Gross Weight: 37 kg
Protection Degree: IP65 (Waterproof and Dustproof)
Installation Style: Wall-mounted
Warranty: 2 years
The EU118-12KL3 Hybrid Solar Inverter offers a powerful, reliable, and scalable solution for your solar energy needs, with advanced features designed for optimal performance and energy management. Ideal for both residential and commercial applications, this inverter ensures efficient energy conversion, safe operation, and long-term reliability.
