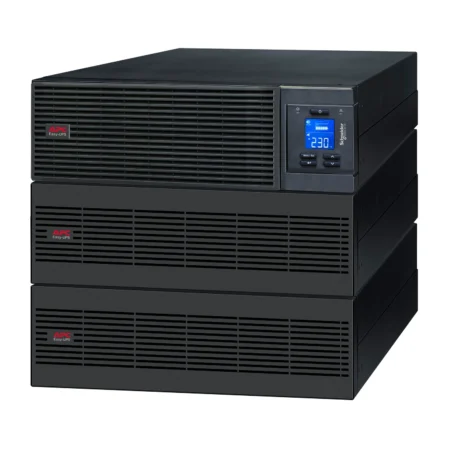

APC Easy UPS On-Line SRV20KRILRK 20kVA / 20kW 230V Rackmount 9U with Extended Runtime Battery Pack
11.500.000 د.ع
This item: APC Easy UPS On-Line SRV20KRILRK 20kVA / 20kW 230V Rackmount 9U with Extended Runtime Battery Pack
11.500.000 د.ع
11.500.000 د.ع
5.070.000 د.ع
1 × APC Easy UPS 1000VA Without Battery with Selectable Charger and Flooded/SMF Compatible 230V
Out of stock
290.000 د.ع
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
48H
Aug 23 Aug 27
Guaranteed safe & secure checkout
Description

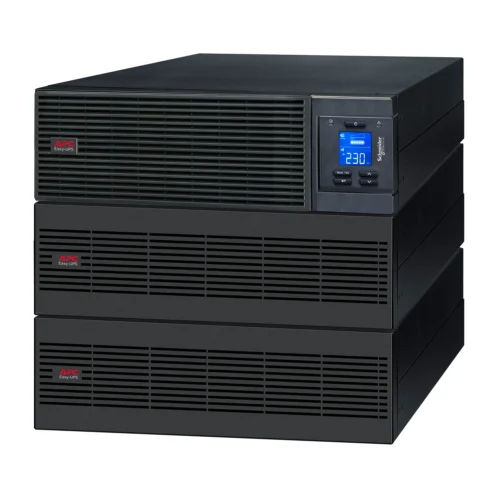

APC Easy UPS On-Line SRV20KRILRK 20kVA / 20kW 230V
The APC Easy UPS On-Line SRV20KRILRK is a high-quality 20kVA / 20kW Double Conversion Online UPS designed to provide essential power protection for critical equipment and applications.
This model is supplied with an Extended Runtime Battery Pack and Rail Kit. It features a rack-mounted 9U design, sine wave output, internal automatic and manual bypass, multifunction LCD status and control console, USB and RS-232 connectivity, and support for multiple external VRLA battery configurations.
Double Conversion Online Technology
The SRV20KRILRK uses Double Conversion Online topology and provides a Sine Wave output.
The UPS provides a maximum configurable power of 20,000VA / 20,000W with an efficiency of 95% at full load.
The unit features an internal bypass with automatic and manual operation and a Crest Factor of 3:1.
Input
The main input voltage is 230V, with support for 415V AC and other input voltage configurations of 220V, 230V and 415V as specified.
The input voltage limits are:
- 110–300V at half load
- 176–300V at full load
The input frequency range is 40–70Hz with automatic frequency sensing.

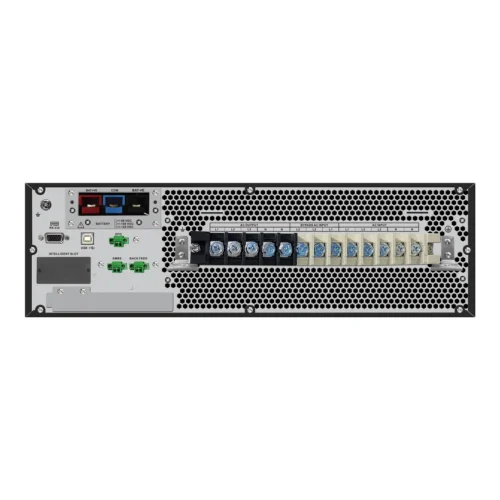

The UPS provides input connection options including:
- 1 × hard-wired 3-wire (1P + N + E)
- 1 × hard-wired 5-wire (3P + N + E)
Output
The main output voltage is 230V, with other configurable output voltages of 220V and 240V.
The output can be configured for 220V, 230V or 240V nominal output voltage.
The output frequency is 50/60Hz ± 3Hz, synchronized to the mains.
The maximum configurable output power is:
- 20,000VA
- 20,000W
The output harmonic distortion is specified at 2%.
The output connection is a hard-wired 3-wire connection.
Extended Runtime Battery System
The SRV20KRILRK uses a VRLA battery system with a battery voltage of ±120V.
The system supports multiple external battery configurations using the SRV120RLBP2-9A battery option.
| Battery Configuration | Capacity |
|---|---|
| SRV120RLBP2-9A × 1 | 5180 VAh |
| SRV120RLBP2-9A × 2 | 6900 VAh |
| SRV120RLBP2-9A × 3 | 8585 VAh |
| SRV120RLBP2-9A × 4 | 10400 VAh |
| SRV120RLBP2-9A × 5 | 12080 VAh |
| SRV120RLBP2-9A × 6 | 13900 VAh |
| SRV120RLBP2-9A × 7 | 15600 VAh |
| SRV120RLBP2-9A × 8 | 17430 VAh |
Rackmount Design

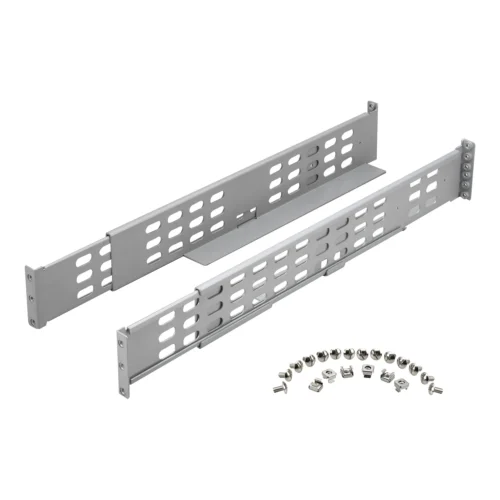

The SRV20KRILRK features a 9U rack-mounted design and is supplied with a rail kit.
The unit has a black finish and is designed for rack-mounted installation.
Communications and Management
The UPS features a multifunction LCD status and control console for monitoring and controlling the system.
Communication and management features include:
- USB compatibility
- RS-232 communication
- Emergency Power Off (EPO)
- Multifunction LCD control panel
Protection and Alarms
The SRV20KRILRK provides a 600J surge energy rating.
Audible alarms provide notifications for:
- Operation on battery
- Low battery
- Overload
An overload condition is indicated by a continuous tone alarm.
Physical Specifications
| Specification | Value |
|---|---|
| Height | 39.3 cm |
| Width | 43.8 cm |
| Depth | 69.0 cm |
| Net Weight | 157 kg |
| Color | Black |
| Rack Height | 9U |
| Protection Degree | IP20 |
Environmental Specifications
- Operating Temperature: 0–40°C
- Operating Relative Humidity: 0–95%, non-condensing
- Operating Altitude: 0–3000 m
- Storage Temperature: -20–60°C
- Storage Relative Humidity: 0–95%, non-condensing
- Storage Altitude: 0–15000 m
- Acoustic Level: 65 dB
- Heat Dissipation: 3712 Btu/h
- Protection Degree: IP20
Certifications and Standards
Product Certification: CE
Applicable Standards:
- EN/IEC 62040-1
- EN/IEC 62040-2
Sustainability
The product documentation includes sustainability and environmental compliance information covering REACH, EU RoHS, China RoHS and WEEE requirements.
- REACH Declaration: Available
- EU RoHS: Compliant
- Mercury Free: Yes
- RoHS Exemption Information: Yes
- China RoHS: Declaration available
- WEEE: Applicable disposal requirements
What’s Included
- Basic UPS signalling RS-232 cable
- CD with software
- DC cable
- Rack mounting brackets
- User manual
- USB cable
Packaging Information
- Package Weight: 196 kg
- Package Height: 1000 mm
- Package Width: 600 mm
- Package Length: 900 mm
Brand: APC
Product Series: APC Easy UPS On-Line
Model: SRV20KRILRK
Product Type: Uninterruptible Power Supply (UPS)
UPS Type: Double Conversion Online
Rated Power: 20,000 W / 20,000 VA
Main Input Voltage: 230 V
Other Input Voltage: 220 V, 230 V, 415 V
Main Output Voltage: 230 V
Other Output Voltages: 220 V, 240 V
Rack Height: 9U
Mounting Mode: Rack-mounted with kit
Rail Kit: Included
Color: Black
Redundant: No
Input Voltage Limits:
110–300 V at half load
176–300 V at full load
Input Frequency: 40–70 Hz, auto sensing
Input Connectors:
1 × hard wire 3-wire (1P + N + E)
1 × hard wire 5-wire (3P + N + E)
Maximum Configurable Output Power: 20,000 VA / 20,000 W
Output Frequency: 50/60 Hz ± 3 Hz, synchronized to mains
Output Connection: Hard wire 3-wire
Harmonic Distortion: 2%
Wave Type: Sine Wave
Efficiency: 95% at full load
Bypass: Internal bypass, automatic and manual
Crest Factor: 3:1
Configurable Output Voltage: 220 V / 230 V / 240 V
Battery Type: VRLA
Battery Voltage: ±120 V
Battery Options: SRV120RLBP2-9A
Supported Battery Packs: 1–8
Battery Capacity:
1 Battery Pack: 5180 VAh
2 Battery Packs: 6900 VAh
3 Battery Packs: 8585 VAh
4 Battery Packs: 10400 VAh
5 Battery Packs: 12080 VAh
6 Battery Packs: 13900 VAh
7 Battery Packs: 15600 VAh
8 Battery Packs: 17430 VAh
Control Panel: Multifunction LCD status and control console
USB Compatible: Yes
RS-232: Yes
Emergency Power Off (EPO): Yes
Surge Energy Rating: 600 J
Height: 39.3 cm
Width: 43.8 cm
Depth: 69.0 cm
Net Weight: 157 kg
Operating Temperature: 0–40°C
Operating Relative Humidity: 0–95%, non-condensing
Operating Altitude: 0–3000 m
Storage Temperature: -20–60°C
Storage Relative Humidity: 0–95%, non-condensing
Storage Altitude: 0–15000 m
Acoustic Level: 65 dB
Heat Dissipation: 3712 Btu/h
IP Degree of Protection: IP20
Certification: CE
Standards:
EN/IEC 62040-1
EN/IEC 62040-2
