Description

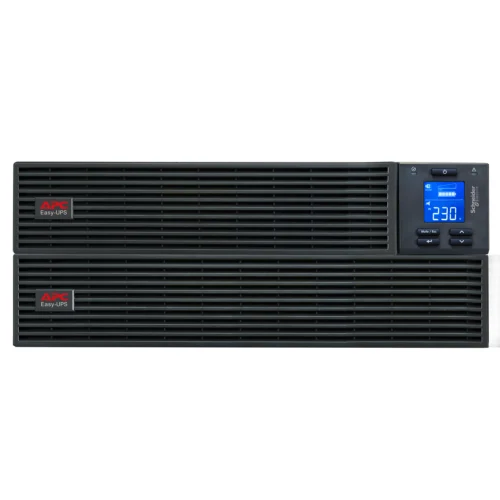

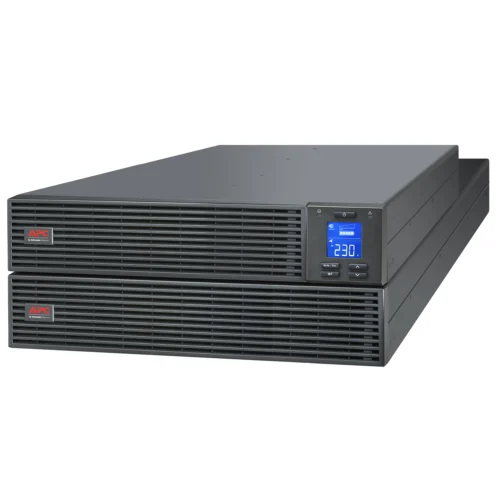

APC Easy UPS On-Line SRV10KRI 10kVA / 10kW 230V Rackmount 4U
The APC Easy UPS On-Line SRV10KRI is a high-quality 10kVA / 10kW Double Conversion Online UPS designed to provide essential power protection, even under unstable power conditions.
This 230V rack-mounted UPS has a compact 4U form factor and is designed for horizontal rack installation. It features a hard-wired 3-wire output connection (1P + N + E), multifunction LCD status and control console, Intelligent Card Slot, USB and RS-232 communication interfaces.
Double Conversion Online Technology
The SRV10KRI uses Double Conversion Online topology and provides a sine wave output. It offers a maximum configurable power of 10,000VA / 10,000W with an efficiency of 94% at full load.
The UPS includes an internal bypass that can operate automatically or manually and has a Load Crest Factor of 3:1.
Input
The main input voltage is 230V, with other supported input voltages of 220V and 240V.
The input voltage limits are:
- 110–300V at 60% load
- 176–300V at full load
The input frequency range is 40–70Hz with automatic frequency sensing.
The UPS has one hard-wired 3-wire input connection (1P + N + E).
Output
The main output voltage is 230V, with other supported output voltages of 220V and 240V.
The output frequency is 50/60Hz ± 3Hz when synchronized to the mains.
The maximum configurable output power is 10,000VA / 10,000W.
The output connection is a hard-wired 3-wire connection (1P + N + E).
The UPS provides a sine wave output, with 1% harmonic distortion and a 3:1 crest factor.
Battery System
The SRV10KRI uses a lead-acid battery system with a battery voltage of 192V.
The typical battery recharge time is 5 hours.
The specified battery life is 3–5 years.
The battery charger power is rated at 235W.
Rackmount Design
The UPS features a compact 4U rack-mounted design with a horizontal mounting position.
It has a Black (RAL 7010) finish and a front mounting preference.
The mounting mode is rack-mounted with kit.
The supplied rack mounting hardware includes 2 rack mounting brackets.
Communications and Management
The SRV10KRI features a multifunction LCD status and control console for monitoring and controlling the UPS.
Communication and management features include:
- USB interface
- RS-232 interface
- Intelligent Card Slot
- 1 free slot
- Emergency Power Off (EPO)
Protection and Alarms
The UPS provides a 600J surge energy rating.
Audible alarms indicate:
- Operation on battery
- Low battery conditions
- Overload conditions
An overload condition is indicated by a continuous tone alarm.
Physical Specifications
| Specification | Value |
|---|---|
| Height | 17.3 cm |
| Width | 43.8 cm |
| Depth | 71.0 cm |
| Net Weight | 68 kg |
| Color | Black (RAL 7010) |
| Rack Height | 4U |
| Mounting Position | Horizontal |
| Protection Degree | IP20 |
Environmental Specifications
- Operating Temperature: 0–40°C
- Operating Relative Humidity: 0–95%, non-condensing
- Operating Altitude: 0–3000 m
- Storage Temperature: -15–60°C
- Storage Relative Humidity: 0–95%, non-condensing
- Storage Altitude: 0–15000 m
- Acoustic Level: 58 dB
- Heat Dissipation: 2128 Btu/h
- Protection Degree: IP20
Conformance and Certifications
Product Certifications:
- CE
- UKCA
- EAC
- TISI
Applicable Standards:
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Sustainability
The product carries the Green Premium label from Schneider Electric.
- Toxic Heavy Metal Free: Yes
- Mercury Free: Yes
- EU RoHS: Compliant
- REACH: Compliant
- China RoHS: Documentation available
What’s Included
- 1 × USB cable
- 1 × RS-232 configuration cable
- 2 × rack mounting brackets
- 1 × external battery pack
- 1 × battery cable
- User manual
Technical Specifications
| Specification | Details |
|---|---|
| Brand | APC |
| Product | APC Easy UPS On-Line |
| Model | SRV10KRI |
| UPS Type | Double Conversion Online |
| Rated Power | 10,000 W / 10,000 VA |
| Main Input Voltage | 230 V |
| Other Input Voltages | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltages | 220 V, 240 V |
| Rack Height | 4U |
| Mounting | Rack-mounted with kit |
| Mounting Position | Horizontal |
| Color | Black (RAL 7010) |
| Input Voltage Limits | 110–300 V at 60% load; 176–300 V at full load |
| Input Frequency | 40–70 Hz, auto sensing |
| Input Connector | 1 × hard wire 3-wire (1P + N + E) |
| Maximum Configurable Output Power | 10,000 VA / 10,000 W |
| Output Frequency | 50/60 Hz ± 3 Hz, synchronized to mains |
| Output Connection | Hard wire 3-wire (1P + N + E) |
| Wave Type | Sine Wave |
| Efficiency | 94% at full load |
| Bypass | Internal bypass, automatic and manual |
| Crest Factor | 3:1 |
| Harmonic Distortion | 1% |
| Battery Type | Lead-acid |
| Battery Voltage | 192 V |
| Battery Recharge Time | 5 hours |
| Battery Life | 3–5 years |
| Battery Charger Power | 235 W |
| Control Panel | Multifunction LCD status and control console |
| USB Compatible | Yes |
| USB Interface | Yes |
| RS-232 Interface | Yes |
| Intelligent Card Slot | Yes |
| Free Slots | 1 |
| Emergency Power Off (EPO) | Yes |
| Surge Energy Rating | 600 J |
| Height | 17.3 cm |
| Width | 43.8 cm |
| Depth | 71.0 cm |
| Net Weight | 68 kg |
| Protection Degree | IP20 |
| Operating Temperature | 0–40°C |
| Operating Relative Humidity | 0–95%, non-condensing |
| Operating Altitude | 0–3000 m |
| Storage Temperature | -15–60°C |
| Storage Relative Humidity | 0–95%, non-condensing |
| Storage Altitude | 0–15000 m |
| Acoustic Level | 58 dB |
| Heat Dissipation | 2128 Btu/h |
| Certifications | CE, UKCA, EAC, TISI |
