APC Easy UPS On-Line SRV3KRI 3kVA / 2400W 230V Rackmount 2U

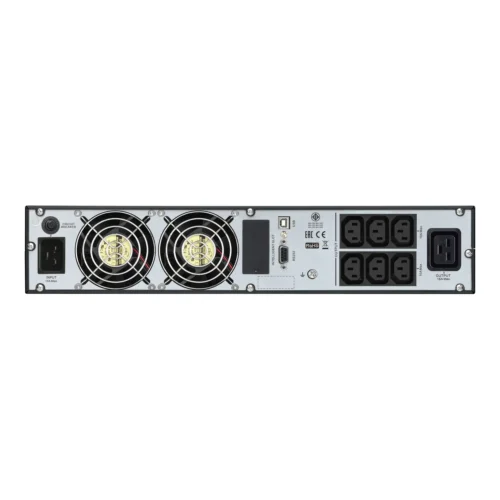

APC Easy UPS On-Line SRV3KRI is a 3kVA / 2400W, 230V 2U rack-mounted Double Conversion Online UPS designed for essential power protection, even under unstable power conditions. It features sine wave output, 6 IEC C13 and 1 IEC C19 outlets, multifunction LCD, Intelligent Card Slot, USB and RS-232 connectivity, internal bypass, and a 72V lead-acid battery system.
1.500.000 د.ع
This item: APC Easy UPS On-Line SRV3KRI 3kVA / 2400W 230V Rackmount 2U
1.500.000 د.ع
1.500.000 د.ع
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
48H
Aug 23 Aug 27
Guaranteed safe & secure checkout
Description
APC Easy UPS On-Line SRV3KRI 3kVA / 2400W 230V Rackmount 2U
The APC Easy UPS On-Line SRV3KRI is a high-quality 3kVA / 2400W Double Conversion Online UPS designed to provide essential power protection, even under unstable power conditions.
With a compact 2U rack-mounted design, the SRV3KRI is suitable for applications where reliable power protection and efficient rack space utilization are required.
Double Conversion Online Technology
The SRV3KRI uses Double Conversion Online UPS technology and provides a sine wave output.
The UPS provides a maximum configurable power of 3000VA / 2400W and has an efficiency of 88% at full load.
It also features an internal bypass, operating automatically or manually, and a Crest Factor of 3:1.
Input
The main input voltage is 230V, with support for other input voltages of 220V and 240V.
The input voltage limits are:
- 110–285V at half load
- 160–280V at full load
The input frequency range is 40–70Hz with automatic frequency sensing.
The UPS uses an IEC 60320 C20 input connection.
Output
The main output voltage is 230V, with support for other output voltages of 220V and 240V.
The output frequency is 50/60Hz ± 3Hz, synchronized to the mains.
The UPS provides:
- 6 × IEC 60320 C13 outlets
- 1 × IEC 60320 C19 outlet
The output harmonic distortion is specified at 3%.
Battery System
The SRV3KRI uses a lead-acid battery system with a battery voltage of 72V.
The typical battery recharge time is 4 hours.
The specified battery life is 3–5 years.
The rated battery charger power is 60W.
The specified replacement battery is APCRBCV202.
Rackmount Design
The SRV3KRI features a compact 2U rack-mounted design with horizontal mounting.
The unit has a black RAL 7010 finish and is designed for front mounting.
The mounting mode is rack-mounted with kit.
Communications and Management
The UPS features a multifunction LCD status and control console for monitoring and controlling the unit.
It provides USB compatibility, an RS-232 configuration interface, and 1 free slot for an optional card.
Audible alarms provide notifications for:
- Operation on battery
- Low battery
- Overload
Protection
The SRV3KRI provides a 600J surge energy rating.
The UPS also includes an internal bypass with automatic and manual operation.
Physical Specifications
| Specification | Value |
|---|---|
| Height | 8.6 cm |
| Width | 43.7 cm |
| Depth | 63.2 cm |
| Net Weight | 27.6 kg |
| Color | Black (RAL 7010) |
| Rack Height | 2U |
| Mounting Position | Horizontal |
| Protection Degree | IP20 |
Environmental Specifications
- Operating Temperature: 0–40°C
- Operating Relative Humidity: 0–95%, non-condensing
- Operating Altitude: 0–3000 m
- Storage Temperature: -20–50°C
- Storage Relative Humidity: 0–95%, non-condensing
- Storage Altitude: 0–15000 m
- Acoustic Level: 50 dBA
- Heat Dissipation: 910 Btu/h
Certifications and Standards
Product Certifications:
- CE
- UKCA
- EAC
- TISI
Applicable Standards:
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Sustainability
The product documentation specifies compliance with the EU RoHS Directive and provides a REACH Declaration.
- Toxic Heavy Metal Free: Yes
- Mercury Free: Yes
- EU RoHS: Compliant
- China RoHS Declaration: Available
- RoHS Exemption Information: Yes
- Energy Efficient Product: Yes
What’s Included
- 1 × IEC 60320 C19 to Schuko power cable
- 1 × IEC 60320 C13 to C14 power cable
- 1 × USB cable
- 1 × RS-232 configuration cable
- 1 × Rack mounting brackets
- 1 × User manual
Product Attributes
| Attribute | Specification |
|---|---|
| Brand | APC |
| Model | SRV3KRI |
| Series | Easy UPS On-Line |
| Product Type | Uninterruptible Power Supply (UPS) |
| Rated Power | 3kVA / 2400W |
| Input Voltage | 230V |
| Output Voltage | 230V |
| UPS Type | Double Conversion Online |
| Waveform | Sine Wave |
| Rack Size | 2U |
| Mounting | Rack-mounted with kit |
| Battery Type | Lead-acid battery |
| Battery Voltage | 72V |
| Battery Recharge Time | 4 hours |
| Battery Life | 3–5 years |
| Battery Charger Power | 60W |
| Replacement Battery | APCRBCV202 |
| Input Connection | IEC 60320 C20 |
| Output Connections | 6 × IEC 60320 C13 + 1 × IEC 60320 C19 |
| Efficiency | 88% at full load |
| Input Frequency | 40–70Hz, auto sensing |
| Output Frequency | 50/60Hz ± 3Hz, synchronized to mains |
| Harmonic Distortion | 3% |
| Crest Factor | 3:1 |
| Bypass | Internal bypass, automatic and manual |
| Surge Protection | 600J |
| Display | Multifunction LCD status and control console |
| Communication | USB + RS-232 |
| Free Slot | 1 |
| USB Compatible | Yes |
| Height | 8.6cm |
| Width | 43.7cm |
| Depth | 63.2cm |
| Net Weight | 27.6kg |
| Operating Temperature | 0–40°C |
| Operating Humidity | 0–95%, non-condensing |
| Operating Altitude | 0–3000m |
| Acoustic Level | 50dBA |
| Protection Degree | IP20 |
| Certifications | CE, UKCA, EAC, TISI |
