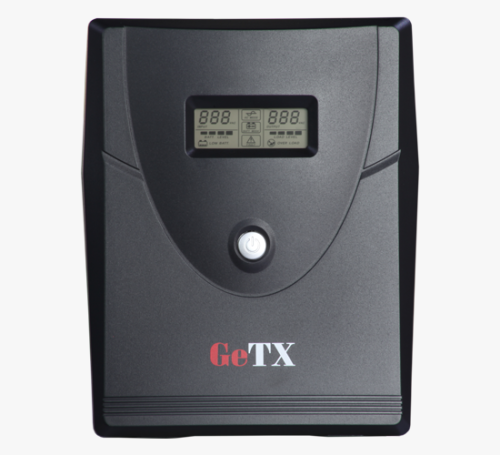

GXK-2000-C 2000VA / 1200W Line Interactive UPS
The GXK-2000-C is a reliable 2000VA / 1200W Line Interactive UPS designed to provide dependable backup power and protection for computers, networking equipment, CCTV systems, POS systems, office equipment, and other essential electronic devices.
With a wide 140–300VAC input voltage range, advanced Boost & Buck AVR voltage stabilization, intelligent microprocessor control, simulated sinewave output, automatic restart, and cold start functionality, the GXK-2000-C is an excellent solution for environments affected by unstable electricity and frequent voltage fluctuations.
Reliable Line Interactive UPS
The GXK-2000-C features advanced microprocessor-controlled technology with an internal self-diagnostic system designed to monitor operating conditions and improve UPS reliability.
Its Line Interactive technology automatically responds to changes in the mains supply, helping regulate voltage while reducing unnecessary switching to battery mode. This can help minimize battery usage and improve battery service life.
Wide 140–300VAC Input Range
The GXK-2000-C supports a wide 140–300VAC input voltage range, making it suitable for areas where mains voltage frequently fluctuates.
The built-in Boost and Buck AVR automatically regulates the incoming voltage:
Boost AVR: Raises low mains voltage.
Buck AVR: Reduces high mains voltage.
Two boost and one buck control stages: Provide effective voltage stabilization across a wide input range.
This helps provide a more stable power supply to connected equipment while reducing unnecessary battery discharge.
2000VA / 1200W Power Capacity
The GXK-2000-C provides a capacity of 2000VA / 1200W, allowing it to support multiple electronic devices simultaneously, provided that the total connected load remains within the 1200W maximum active power rating.
This capacity makes it suitable for office equipment, computers, networking installations, CCTV systems, POS systems, and other medium-power electronic loads.
Fast Transfer Time
When AC mains power fails, the UPS automatically transfers connected equipment to battery operation.
The transfer time is typically 4–8 milliseconds, with a maximum specified transfer time of 13 milliseconds, helping minimize interruptions during power outages.
Simulated Sinewave Output
During battery operation, the GXK-2000-C provides a simulated sinewave output with a frequency of 50/60Hz ±1Hz.
This output is suitable for many common computers, networking devices, office equipment, CCTV systems, and electronic appliances.
For equipment that specifically requires pure sinewave power, a pure sinewave UPS should be selected.
24V Battery System
The GXK-2000-C uses a 24VDC battery system consisting of two rechargeable batteries:
12V 9Ah × 2
The typical recharge time is approximately 6–8 hours to recover 90% of battery capacity, depending on battery condition and operating conditions.
The UPS includes overcharge and overdischarge protection to help protect the battery system.
Automatic Restart & Cold Start
The automatic restart function allows the UPS to restart automatically when AC mains power is restored following a power outage.
The cold start function allows the UPS to start directly from battery power when mains electricity is unavailable, provided the battery has sufficient charge.
These features make the GXK-2000-C suitable for locations where power interruptions occur frequently.
LED & LCD Monitoring
Depending on the available version, the GXK-2000-C can be equipped with an LED or LCD display.
The LED version provides basic operating information:
AC Mode
Battery Mode
Overload
Fault
The LCD version provides detailed information, including:
AC Mode
Battery Mode
Load Level
Battery Level
Input Voltage
Output Voltage
Overload
Fault
Low Battery
The LCD display allows users to monitor the UPS condition and connected load clearly and conveniently.
Comprehensive Protection
The GXK-2000-C provides multiple protection functions designed to protect both the UPS and connected equipment:
Short circuit protection
Overload protection
Battery overcharge protection
Battery overdischarge protection
These functions help improve safety and reliability during abnormal electrical conditions.
Intelligent Audible Alarm System
The UPS uses different alarm patterns to indicate important operating conditions:
Battery Mode: Beep every 10 seconds
Low Battery: Beep every second
Overload: Beep every 0.5 second
Battery Replacement: Beep every 2 seconds
Fault: Continuous alarm
This allows users to identify important UPS warnings quickly.
Compact & Practical Design
The GXK-2000-C has dimensions of approximately 380 × 158 × 198 mm and a net weight of approximately 10.5 kg.
Its practical form factor allows convenient installation in offices, homes, shops, networking environments, and small IT installations.
The operating noise level is less than 55dB.
Available in Iraq 🇮🇶
The GXK-2000-C 2000VA / 1200W Line Interactive UPS is available in Iraq, providing customers with a reliable local solution for backup power and protection against unstable voltage and power interruptions.
Local availability also makes it easier to access after-sales support, maintenance, and battery replacement when required.
1-Year Warranty
The GXK-2000-C comes with a 1-year warranty, providing additional peace of mind for customers.
Warranty coverage includes:
UPS Main Board: 1-year warranty
Battery: 1-year warranty
The warranty covers the main UPS electronics and supplied battery during the warranty period, subject to the applicable warranty terms and conditions.
Key Specifications
| Specification | GXK-2000-C |
|---|---|
| UPS Type | Line Interactive |
| Capacity | 2000VA / 1200W |
| Input Voltage | 220 / 230 / 240VAC |
| Input Voltage Range | 140–300VAC |
| Input Frequency | 50/60Hz, Auto Sensing |
| AVR | Boost & Buck |
| Output Voltage Regulation | ±10% in Battery Mode |
| Output Frequency | 50/60Hz ±1Hz |
| Transfer Time | Typical 4–8ms, Max. 13ms |
| Battery Waveform | Simulated Sinewave |
| Battery Voltage | 24VDC |
| Battery Configuration | 12V 9Ah × 2 |
| Recharge Time | 6–8 hours to 90% capacity |
| Cold Start | Yes |
| Automatic Restart | Yes |
| Display | LED / LCD Version |
| Protection | Short Circuit, Overload, Overcharge & Overdischarge |
| Communication | USB or RS232 |
| Operating Temperature | 0–40°C |
| Relative Humidity | 0–90%, Non-condensing |
| Noise Level | <55dB |
| Dimensions (D × W × H) | 380 × 158 × 198 mm |
| Net Weight | Approx. 10.5 kg |
| Availability | Available in Iraq |
| Warranty | 1 Year – Main Board & Battery |
Ideal Applications
The GXK-2000-C 2000VA / 1200W UPS is suitable for:
Desktop computers and workstations
Networking equipment
Routers and switches
CCTV and security systems
POS and cashier systems
Office equipment
Communication equipment
Small IT installations
Home electronics
Shops and commercial applications
Why Choose the GXK-2000-C?
The GXK-2000-C 2000VA / 1200W Line Interactive UPS combines reliable battery backup with wide-range AVR voltage stabilization, fast transfer time, automatic restart, cold start, comprehensive protection, and USB/RS232 communication.
Its 140–300VAC input range and Boost/Buck AVR technology make it especially suitable for areas with unstable electricity and frequent voltage fluctuations.
With 2000VA / 1200W capacity, a 24V battery system, availability in Iraq, and a 1-year warranty covering both the UPS main board and battery, the GXK-2000-C provides a practical and dependable solution for protecting essential electronic equipment from power interruptions and unstable mains voltage.
