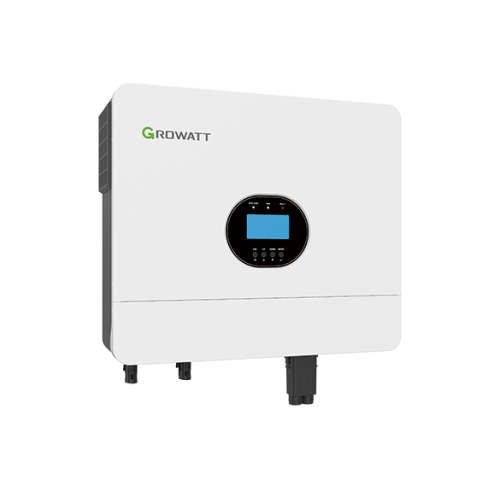

The Growatt SPF 6000 ES Plus is a high-performance off-grid solar inverter designed to deliver reliable and efficient power for homes, offices, and small commercial installations.

With a rated output power of 6000W, this inverter supports 48V battery systems and provides a pure sine wave AC output, making it suitable for running sensitive electronic equipment and household appliances.

The inverter features dual MPPT solar charge controllers, allowing it to harvest maximum energy from solar panels even under varying sunlight conditions. It supports up to 8000W of solar PV input, making it ideal for medium-size solar installations.

Designed with flexibility in mind, the SPF 6000 ES Plus allows parallel operation of up to 6 units, enabling users to easily expand their solar system capacity when energy demand increases.

The inverter also includes two AC outputs with smart load management, helping prioritize critical loads and improve overall system efficiency.

With its high efficiency, wide PV input range, and advanced protection features, the Growatt SPF 6000 ES Plus offers a reliable solution for modern solar power systems.

Key Features

• 6000W / 6000VA rated power

• Dual MPPT solar charge controllers

• Supports up to 8000W PV input

• Compatible with 48V Lithium and Lead-acid batteries

• Parallel operation up to 6 units

• Pure sine wave output

• Smart load management with dual AC outputs

• Maximum efficiency up to 93%

• Wide PV input voltage range up to 500VDC

• Built-in dust filter for harsh environments

Technical Specifications

Inverter Output

• Rated Power: 6000W / 6000VA

• Output Voltage: 230VAC ±5%

• Frequency: 50 / 60 Hz

• Surge Power: 12000VA

• Maximum Efficiency: 93%

• Waveform: Pure Sine Wave

• Transfer Time: 10 ms (20 ms max)

Solar Input (PV)

• Maximum PV Power: 8000W

• MPPT Voltage Range: 120V – 450V DC

• Maximum PV Voltage: 500V DC

• Number of MPPT Trackers: 2

• Maximum PV Input Current: 16A per MPPT

• Maximum Solar Charge Current: 100A

Battery

• Battery Voltage: 48V DC

• Battery Type: Lithium / Lead-acid

• Maximum Charging Current: 80A

AC Input

• Rated Voltage: 230VAC

• Voltage Range:

  • 170-280V (for computers)

  • 90-280V (for home appliances)

• Frequency: 50 / 60 Hz

Physical Specifications

• Dimensions: 460 × 395 × 132 mm

• Weight: 13.5 kg

• Protection Level: IP20

Operating Conditions

• Operating Temperature: 0°C – 55°C

• Storage Temperature: -15°C – 60°C

• Humidity: 5% – 95%

• Maximum Altitude: 2000 m
